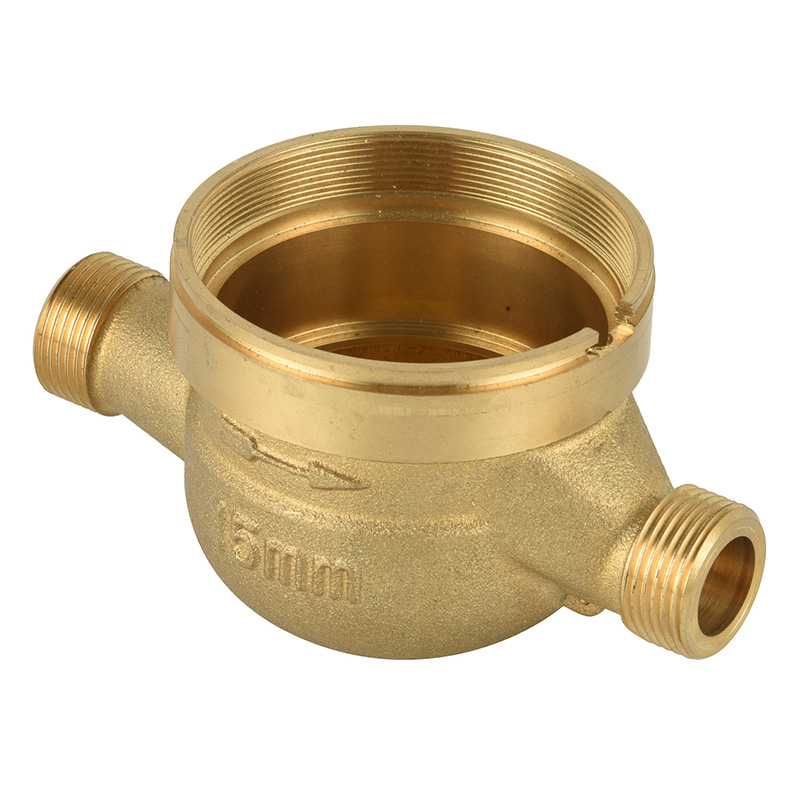

Brass water meter body
This Brass water meter body is offered by China manufacturer Ningbo Ningshui instruments co.,ltd.As a professional manufacturer and distributor in China, our company has developed a comprehensive range of water meters and complete solutions for the commercial, agricultural, industrial, and domestic markets. Our focus on precision metering and adapting to changes in technology has been our mission.
Send Inquiry
Product Description
Ningshui Stainless Steel Water Meter body Introduction
Brass water meter body
This is Ningshui Brass water meter body .
The water meter body forms the foundation of a good water meter. A brass water meter body, made from high-quality copper materials and advanced technology, creates a sturdy base for the water meter, resulting in higher precision, better quality, and a longer lifespan. If you have the ability to assemble and test the meter yourself, purchasing a brass body is a good choice.
→ Support customization according to customer drawings, support OEM
→ For horizontal use
→ Material: Brass
→ Measuring accuracy conform to ISO 4064 class B Standard
→ Selected high quality materials for steady & reliable characteristic
→ Universal use.Easy for interchange & maintenance
→ External adjustment or internal adjustment can be choose
→ Easy to assemble → The requirements for straight pipe section are low.
This is Ningshui Brass water meter body .
The water meter body forms the foundation of a good water meter. A brass water meter body, made from high-quality copper materials and advanced technology, creates a sturdy base for the water meter, resulting in higher precision, better quality, and a longer lifespan. If you have the ability to assemble and test the meter yourself, purchasing a brass body is a good choice.
→ Support customization according to customer drawings, support OEM
→ For horizontal use
→ Material: Brass
→ Measuring accuracy conform to ISO 4064 class B Standard
→ Selected high quality materials for steady & reliable characteristic
→ Universal use.Easy for interchange & maintenance
→ External adjustment or internal adjustment can be choose
→ Easy to assemble → The requirements for straight pipe section are low.
Ningshui Brass water meter body
Parameter (Specification)
| Size | Length(L) | Connection Thread |
| DN15 | 165mm | G3/4” B |
| DN20 | 195mm | G1” B |
| DN25 | 225mm | G1 1/4” B |
Features
·Register sealed type: Dry type; Wet type.
·Size: 15mm 20mm and 25mm
·Cold water / Hot water
·Custom lengths and threads are available
·Thread end type: BSP / NPT.
·Materials: Brass
·Plastic Working pressure: PN10(10bar)
·Temperature rating: -20 ~110
·Pressure rating:MAP 10
·Pressure loss rating:P63
·Working pressure :1.6MPa
The maximum permissible error
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
